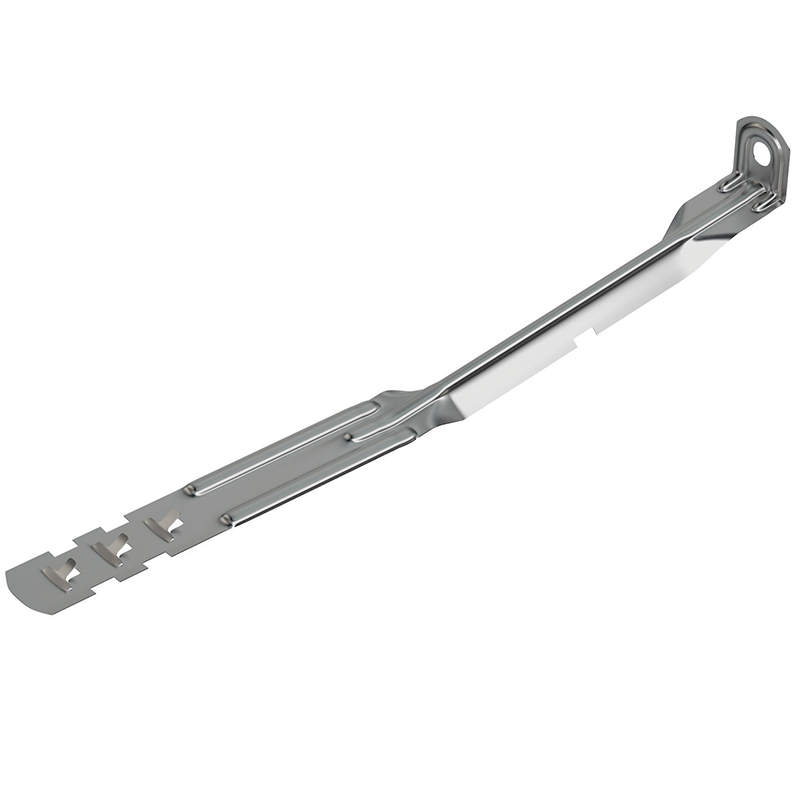

TecTies S/S Timber Frame Tie
Product Description
Fully tested to BS EN 846-6:2012. The ties meet the requirements of BS EN 845-1:2013 as a Type 6 tie and meets the technical requirements of NHBC. It is recommended that TecTies Timber Frame Ties are installed at a density of 4.4 ties per square metre in buildings where the basic wind speed does not exceed 25m/s. This density should be increased to 7.0 ties per square metre in more severe situations.All TecTies cavity wall ties are independently tested at Lucideon, a notified body number 1289 to comply with BS EN 845-1:2013. Underwritten by TZUS – Prague Notified Body Number 1020.
Compressive Load Capacity 870N
Tensile Load Capacity 3440N
Displacement at 1/3 Load - Compression 0.50mm
Displacement at 1/3 Load - Tension 0.46mm
PRODUCTS
£51.10 EX. VAT
£61.32 INC. VAT
Log in to save to favourites
TecTies TTTF125 S/S Timber Frame Tie (for 125mm Cavity) c/w Nails
Fully tested to BS EN 846-6:2012. The ties meet the requirements of BS EN 845-1:2013 as a Type 6 tie and meets the technical requirements of NHBC. It is recommended that TecTies Timber Frame Ties are installed at a density of 4.4 ties per square metre in buildings where the basic wind speed does not exceed 25m/s. This density should be increased to 7.0 ties per square metre in more severe situations.
All TecTies cavity wall ties are independently tested at Lucideon, a notified body number 1289 to comply with BS EN 845-1:2013. Underwritten by TZUS – Prague Notified Body Number 1020.
Compressive Load Capacity 870N
Tensile Load Capacity 3440N
Displacement at 1/3 Load - Compression 0.50mm
Displacement at 1/3 Load - Tension 0.46mm
Log in to save to favourites
£51.10 EX. VAT
£61.32 INC. VAT
£65.52 EX. VAT
£78.62 INC. VAT
Log in to save to favourites
TecTies TTTF150 S/S Timber Frame Tie (for 150mm Cavity) c/w Nails
Fully tested to BS EN 846-6:2012. The ties meet the requirements of BS EN 845-1:2013 as a Type 6 tie and meets the technical requirements of NHBC. It is recommended that TecTies Timber Frame Ties are installed at a density of 4.4 ties per square metre in buildings where the basic wind speed does not exceed 25m/s. This density should be increased to 7.0 ties per square metre in more severe situations.
All TecTies cavity wall ties are independently tested at Lucideon, a notified body number 1289 to comply with BS EN 845-1:2013. Underwritten by TZUS - Prague Notified Body Number 1020.
Compressive Load Capacity 870N
Tensile Load Capacity 3440N
Displacement at 1/3 Load - Compression 0.50mm
Displacement at 1/3 Load - Tension 0.46mm
Log in to save to favourites
£65.52 EX. VAT
£78.62 INC. VAT
