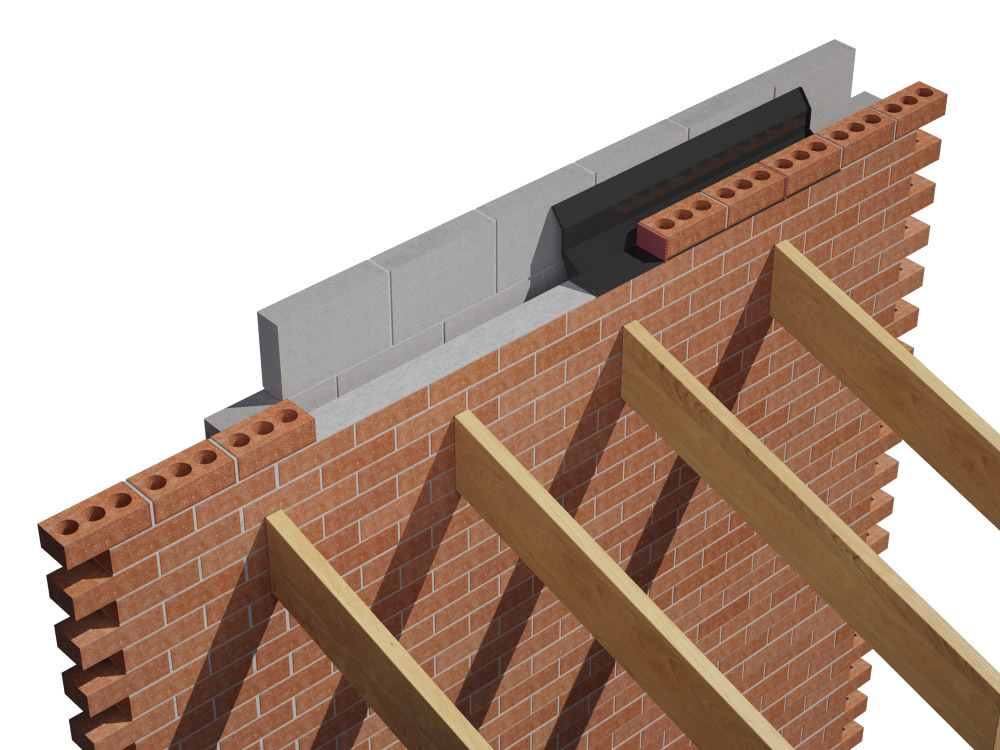

Inter-loc Horizontal Tray

Product Description

Use
• At the abutment of a flat roof with a cavity wall
• At the abutment of a lean-to or mono pitch roof with a cavity wall
• Over concrete ring beams
• Over airbricks, cavity liners, ducts, meter boxes, etc.
• On external walls - not exceeding 102.5mm in thickness - built from standard brickwork, blockwork or stone
• Clear cavity widths of between 50mm-125mm

Features and benefits
• Fits all clear cavity sizes up to 125mm
• Suitable for brick, block and stone wall construction (cutting of masonry may be required)
• 150mm high back upstand exceeds minimum requirements of NHBC
• Angled section between cavity
• Interlocking mechanism for joining tray lengths to eliminate tray jointing
• Built to brick bonding lengths for ease of use
• Angled section between cavity tray base and rear upstand automatically sheds water to the outer leaf
• Built independent to the inner leaf will enable inner and outer leafs to be built independently, if required
• Available in two lengths: 4 brick for general use and 2 brick for reducing waste when making up a run of cavity tray to the required length
